SRC Pro Technical Specifications

This appendix provides the Safe Remote Control Pro's hardware details — mechanical drawing, electrical and battery ratings, and radio specifications — and lists which SRC Pro models FORT Manager still supports.

This appendix provides details of the Safe Remote Control Pro hardware.

SRC Pro Mechanical drawing

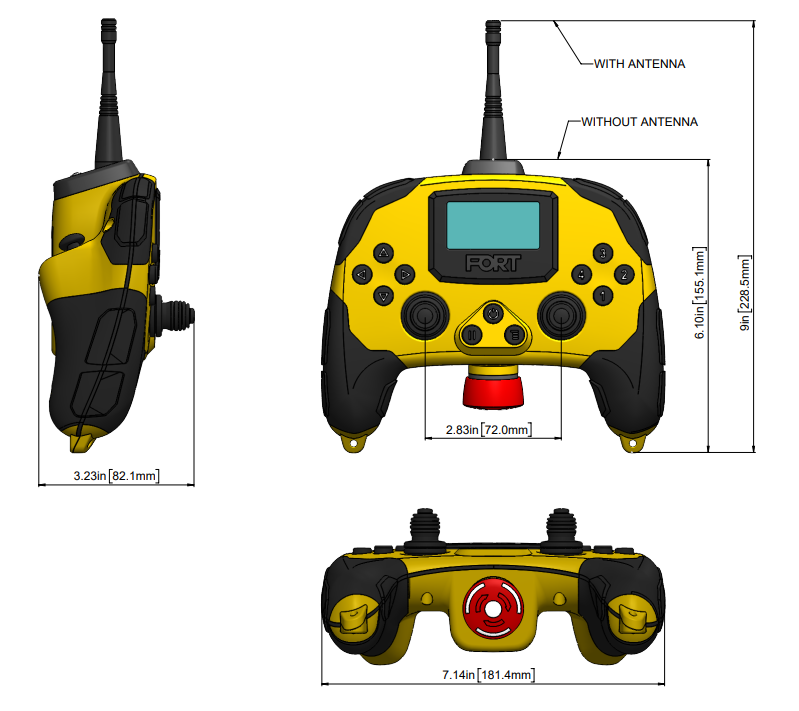

The following drawing shows the dimensions of the Safe Remote Control Pro 1001.

../images/srcpro_mech_draw.png
Figure 1. Fig. 41 SRC Pro Mechanical Drawing

Recommended and Absolute Maximum Ratings (SRC Pro)

The following table lists the technical specifications for the Safe Remote Control Pro:

Table 1. Table 81 SRC Pro Absolute and Recommended Specifications
Specification Min Typical Max
Vin (V) 5 VDC (USB)
Current 1.6 A
Weight 726 g | 1.6 lb
Dimensions 181 mm x 155 mm x 83 mm 7.14” x 6.10” x 3.23”
Ingress Protection IP65
E-Stop Button Impact Resistance Rating IK07
Operating and Storage Temperature (internally limited) -20 °C 60 °C
Charging Temperature (internally limited) 0 °C 45 °C
Battery Type Lithium Polymer
Battery Size 4000 mAh
Charge Time 4.5 hours
Connectors

Mini-USB for models 1001 & 1002

USB-C for 1003
Run Time (Bluetooth) 19 hours 22 hours
Run Time (ISM) 18 hours 21 hours
Certification SIL 3 Certified per IEC 61508

You can purchase an SRC Pro with any of several different radios based on frequency requirements and local regulations. Prior to ordering and deployment, consult local regulations to ensure that you are obtaining an SRC Pro with the proper radio.

North America ISM Radio (SRC Pro)

The following table provides the specifications for North America ISM radio 902-928 MHz:

Table 2. Table 82 SRC Pro North America ISM Radio Specifications
Specification Minimum Typical Maximum
Frequency 902 MHz 928 MHz
Bandwidth 600 kHz
Channels 21 21
Receive Sensitivity -100 dBm
Modulation 2-GFSK
Baud Rate 500 kbps
Power (conducted RF output) -10 dBm 23 dBm
SRC Pro Part number SRC Pro 1001

European ISM Radio (SRC Pro)

The following table provides specifications for the European ISM radio:

Table 3. Table 83 European ISM Radio Specifications
Specification Minimum Typical Maximum
Frequency 869.4 MHz 869.653 MHz
Bandwidth 250 kHz
Channels 1 1
Receive Sensitivity -100 dBm
Modulation 2-GFSK
Baud Rate 200 kbps
Power (conducted RF output) -10 dBm 23 dBm
SRC Pro Part number SRC Pro 1002

Bluetooth Low Energy (BLE) Radio (SRC Pro)

The following table provides specifications for the BLE radio:

Table 4. Table 84 BLE Radio Specifications
Specification Minimum Typical Maximum
BLE Version 5.1
Baud Rate 1 Mbps
Power (conducted RF output) 4 dBm
Receive Sensitivity -99d dBm
Part # SRC Pro 1001, SRC Pro 1002

The following table provides specifications for the Long-Range Bluetooth (LRBLE) radio, which is carried by the SRC Pro 1003 only:

Table 5. Table 85 LRBLE Radio Specifications (SRC Pro)
Specification Description
BLE Long Range Version 5.0
Tx Power (conducted RF output) +20 dBm
Receive Sensitivity -105 dBm
Range 100-300 m
Part # SRC Pro 1003

SRC Pro Models and Support Status

The following table lists the SRC Pro models and how each is supported in FORT Manager.

Table 6. SRC Pro Model Support Status
Model Radio Connector Status in FORT Manager
SRC Pro 1000 The radio the 1000 carries. The connector End of support, September 30, 2026
SRC Pro 1001 North America ISM, and BLE Mini-USB Supported
SRC Pro 1002 European ISM, and BLE Mini-USB Supported
SRC Pro 1003 Long-Range Bluetooth (LRBLE) USB-C Supported

End of Support for the SRC Pro 1000

FORT Robotics will discontinue the SRC Pro 1000 on September 30, 2026. Starting on September 30, 2026, FORT Manager will no longer support that model. Specifically, from that date you cannot:

  • Register an SRC Pro 1000, including a replacement unit.
  • Obtain a firmware update for an SRC Pro 1000.
  • Create a new configuration that contains an SRC Pro 1000, or change an existing one.
  • An end-of-support model also does not receive features added after its support ended. Device logging is one example: it arrives with a firmware update, and FORT publishes no further firmware for the SRC Pro 1000. For more information on what logging provides on supported models, see Using Logs.

After the end of support date on September 30, 2026, the following will still continue:

  • Covered repairs under the terms of the product warranty.

If you need continued configuration support or additional functionality, transition to the SRC Pro 1003, which adds Long-Range Bluetooth capability. For more information, see Device Models and Communication Methods
